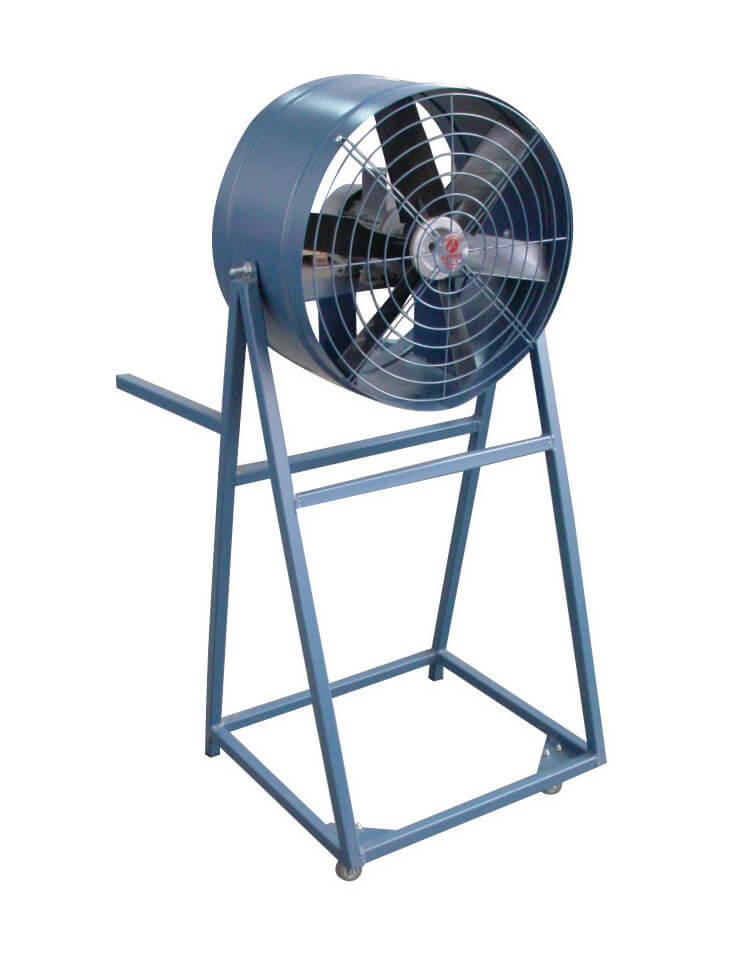

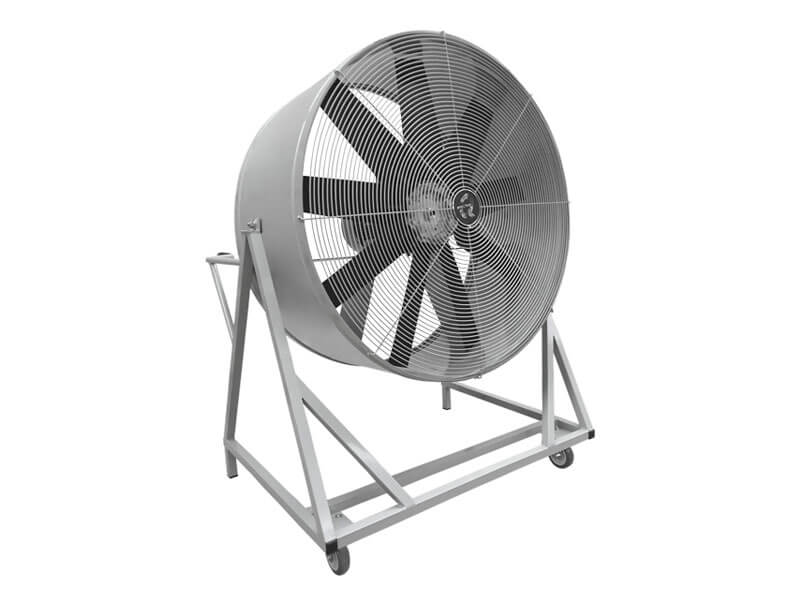

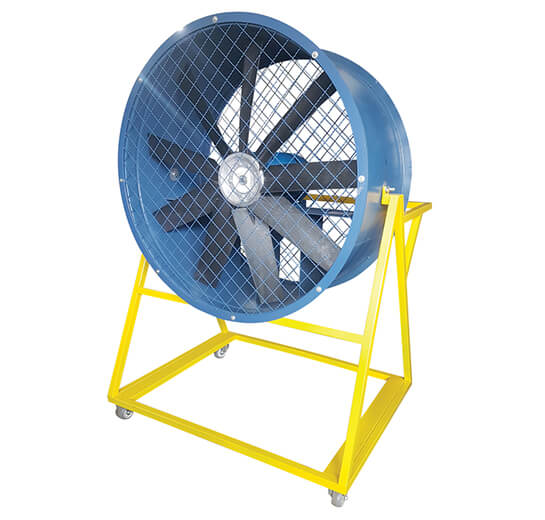

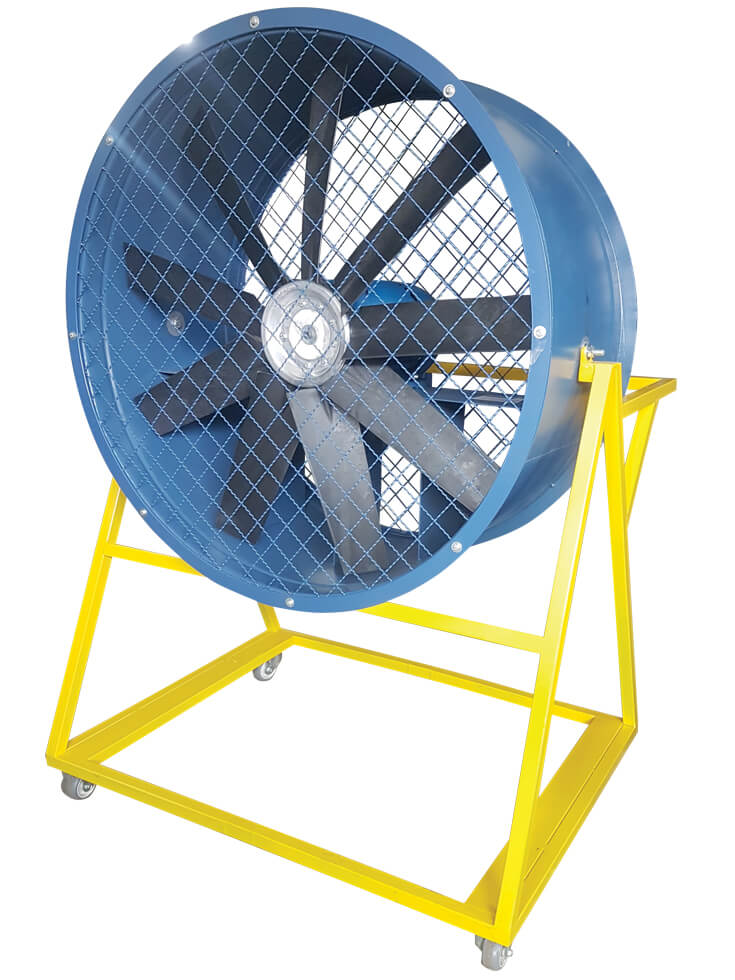

Usado em sistemas de exaustão e insuflamento de ar em ambientes, o Cooler Exaustor (Exaustor Fan Cooler) atende as mais diversas aplicações, sendo indicado para exaustão ou ventilação localizada.
Catálogo completo dos produtos.Faça o download »
A Ventcenter trabalha com modelos construídos em chapas de aço carbono, com hélices em alumínio laminado e polipropileno com cubo em alumínio
MODELO FAN COOLER |
DIÂMETRO (mm) | LARGURA (mm) | VAZÃO (m3/min) | PRESSÃO (mmca) | POTÊNCIA (hp) | ROTAÇÃO (rpm) | VOLTS (voltagem) | RUÍDO (dba) | PESO (kg) |
---|---|---|---|---|---|---|---|---|---|
VC300FC-T4 | 300 | 300 | 36 | 5 | 1/3 | 1750 | 220/380 | 72 | 6 |
VC300FC-M4 | 300 | 250 | 32 | 5 | 1/3 | 1750 | 127/230 | 79 | 6 |
VC400FC-T4 | 400 | 250 | 75 | 8 | 1/3 | 1750 | 220/380 | 82 | 15 |
VC400FC-M4 | 400 | 250 | 65 | 7 | 1/2 | 1750 | 127/230 | 82 | 15 |
VC500FC-T4 | 500 | 300 | 140 | 15 | 1/2 | 1750 | 220/380 | 84 | 26 |
VC500FC-M4 | 500 | 300 | 120 | 8 | 1/3 | 1750 | 127/230 | 84 | 32 |
VC600FC-T4 | 600 | 350 | 190 | 20 | 1 1/2 | 1750 | 220/380 | 90 | 42 |
VC600FC-M4 | 600 | 300 | 170 | 10 | 1/2 | 1750 | 127/230 | 90 | 38 |
VC600FC-T6 | 600 | 350 | 140 | 10 | 3/4 | 1150 | 220/380 | 76 | 42 |
VC700FC-T4 | 700 | 450 | 260 | 15 | 2,0 | 1750 | 220/380 | 92 | 46 |
VC700FC-T6 | 700 | 450 | 220 | 15 | 1,0 | 1150 | 220/380 | 92 | 46 |
VC800FC-T6 | 800 | 450 | 310 | 15 | 1 1/2 | 1150 | 220/380 | 85 | 50 |
VC1000FC-T6 | 1000 | 500 | 420 | 15 | 2,0 | 850 | 220/380 | 85 | 78 |
